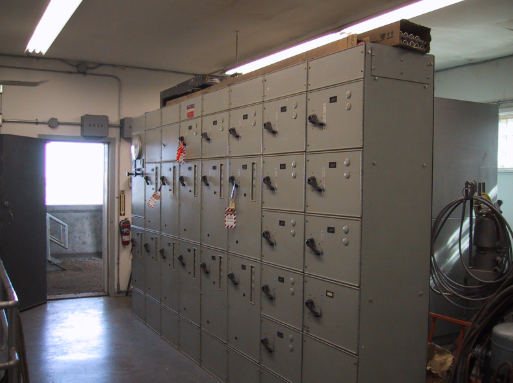

How Does a Motor Control Center Work?

Motor control centers serve as the nerve center for industrial motor operations, consolidating control, protection, and monitoring functions into one centralized system. This comprehensive guide explores MCC components, operation principles, and upgrade considerations for optimal facility performance.

Managing multiple motors across an industrial facility presents significant operational challenges. When motors are controlled by scattered starters and disconnects throughout a plant, routine tasks like troubleshooting become time-consuming and drain productivity, increasing the risk of downtime. A motor control center (MCC) solves these challenges by centralizing motor control into a single, organized system that improves safety, efficiency, and maintenance accessibility. At Riverside Drives, we understand that selecting and maintaining the right MCC configuration directly impacts your facility's operational reliability and bottom line.

Understanding Motor Control Centers

The National Electrical Code defines a motor control center as "an assembly of one or more enclosed sections having a common power bus and principally containing motor control units." This centralized architecture distinguishes MCCs from standalone motor starters or distributed panel configurations, providing a structured approach to motor management that has become essential in modern industrial operations.

MCCs serve facilities across diverse industries including manufacturing plants, water treatment facilities, oil and gas processing, mining operations, and power generation stations. The global MCC market reached $6.57 billion in 2025, with industrial applications accounting for over 70% of total revenue, highlighting their critical role in maintaining operational efficiency.

These systems address four fundamental operational challenges: eliminating the need to access multiple locations for motor control, centralizing monitoring for faster fault identification, standardizing protection across all motor circuits, and consolidating independent starters into serviceable modular units.

Core Components and Architecture

Power Distribution System

The heart of every MCC is its bus system, consisting of horizontal and vertical buses that distribute power throughout the assembly. The horizontal bus runs the length of the enclosure, connecting incoming power across all vertical sections with typical ratings from 600A to 3,200A. Vertical buses branch from the horizontal bus into each section, feeding individual motor control units with standard ratings from 300A to 1,200A.

Motor Control Units

Each motor control unit, commonly called a bucket or drawer, contains the complete control and protection system for a single motor circuit. These self-contained modules include motor starters (DOL, soft starter, or VFD), overload relays sized to motor specifications, disconnect switches or circuit breakers for isolation, and control circuitry for manual or automated operation.

The modular design of these units enables individual servicing without disrupting the entire system, a critical feature for maintaining production continuity in industrial environments.

Control and Monitoring Integration

Modern MCCs incorporate advanced control features, including programmable logic controllers, variable frequency drives, and communication interfaces that support Ethernet and fieldbus protocols. These integrated systems provide real-time monitoring of motor parameters, fault logging for root cause analysis, phase loss and ground fault protection, and predictive maintenance capabilities through data analytics.

How Motor Control Centers Operate

Starting and Control Methods

MCCs accommodate various motor starting methods, each suited to specific application requirements. Direct-on-line starters provide simple, cost-effective control for smaller motors that can tolerate high inrush currents. Star-delta configurations reduce startup current to approximately 33% of DOL levels, though with proportionally reduced starting torque.

Soft starters use thyristors to gradually ramp voltage during startup, eliminating mechanical shock and reducing electrical stress on both motors and connected equipment. Variable frequency drives offer the most sophisticated control, managing both startup and continuous speed regulation while delivering energy savings up to 83% in variable-torque applications.

Protection Mechanisms

MCCs incorporate multiple layers of protection to safeguard motors and personnel. Overload relays detect sustained overcurrent conditions, automatically disconnecting motors before thermal damage occurs. Research indicates that every 10°C rise above rated temperature cuts insulation life in half, making proper overload protection essential for motor longevity.

Short-circuit protection through fuses or circuit breakers prevents catastrophic failures from electrical faults. Ground fault detection systems identify insulation breakdown or wiring issues before they escalate. Arc flash mitigation features, now standard in modern MCCs, include automatic shutters, zone-selective interlocking, and energy-reducing maintenance switches that significantly improve personnel safety.

Communication and Integration

Contemporary MCCs function as intelligent nodes within facility automation systems. Integration with SCADA systems enables remote monitoring and control from central locations. Real-time data collection supports predictive maintenance strategies, while network connectivity through Modbus, Ethernet IP, or Profibus protocols facilitates seamless integration with existing control infrastructure.

Benefits of MCC Implementation

Operational Efficiency

Centralizing motor control delivers measurable operational improvements. Maintenance teams can troubleshoot issues from a single location rather than traversing the facility to check distributed starters. Standardized protection settings across all motors reduce configuration errors and simplify training requirements. The modular design enables rapid component replacement, minimizing production disruptions during maintenance activities.

Safety Enhancements

MCCs significantly improve workplace safety through engineered protection systems. NEMA-rated enclosures protect personnel from electrical hazards while maintaining equipment integrity in harsh environments. Built-in safety interlocks prevent accidental contact with energized components during maintenance procedures. Clear labeling and organized layouts reduce the risk of operational errors that could lead to equipment damage or personnel injury.

Cost Savings

While initial investment in an MCC system may seem substantial, the long-term financial benefits are compelling. Energy savings through optimized motor control, particularly with VFD integration, can reduce power consumption dramatically in variable-load applications. Reduced downtime from faster troubleshooting and standardized maintenance procedures directly impacts production revenue. Extended equipment life through proper protection and controlled starting reduces capital replacement costs over time.

Common Failure Modes and Prevention

Electrical and Thermal Issues

Nearly 44% of electrical equipment failures stem from inadequate maintenance practices. Electrical overload and component aging create cascading failure modes where overheated components accelerate insulation breakdown. Loose connections, often resulting from ignored torque specifications during installation, create resistance hot spots that compound thermal stress.

Prevention requires regular infrared scanning to identify developing hot spots, systematic torque verification of all connections, and proactive replacement of aging components before failure occurs.

Environmental Factors

Environmental conditions significantly impact MCC reliability. Dust accumulation impedes heat dissipation while absorbing moisture that creates conductive paths leading to tracking and arcing. Humidity accelerates corrosion of contacts and bus connections. Temperature extremes stress components beyond design limits.

Proper NEMA enclosure selection provides the first line of defense, with Type 12 ratings for dust protection and Type 3R for outdoor installations. Climate control systems maintain optimal operating temperatures in harsh environments, while regular cleaning schedules prevent contamination buildup.

Installation Best Practices

Site Preparation Requirements

Proper MCC installation begins long before equipment arrives on site. The foundation must provide level support capable of bearing the full system weight, typically 150-200 pounds per linear foot for standard configurations. Concrete pads should cure for at least 28 days before installation, with embedded anchor points positioned according to manufacturer specifications. Floor levelness within 1/8 inch per 10 feet prevents structural stress that could misalign doors or compromise bus connections over time.

Environmental considerations significantly impact long-term reliability. Installation areas require adequate ventilation to dissipate heat generated by motor starters and power components. Ambient temperatures should remain between 0°C and 40°C, with relative humidity below 95% non-condensing. Locations near corrosive vapors, excessive dust, or vibration sources require additional protective measures including sealed enclosures, climate control systems, or vibration dampening mounts.

Electrical Infrastructure Planning

Power feed requirements extend beyond simple ampacity calculations. Incoming cables must accommodate both continuous load and motor starting inrush currents without excessive voltage drop. IEEE standards recommend limiting voltage drop to 3% for branch circuits and 2% for feeders. Cable routing should maintain separation between power and control wiring to prevent electromagnetic interference that could disrupt sensitive control signals.

Grounding systems require particular attention for both safety and performance. A dedicated equipment grounding conductor sized per NEC Article 250 provides the primary fault current path. Supplementary grounding through building steel or ground grids reduces touch potential during fault conditions. At Riverside Drives, we recommend installing isolated grounding systems for sensitive electronic components to minimize noise and ensure reliable operation of programmable controllers and communication networks.

Maintenance Strategies and Schedules

Preventive Maintenance Programs

Establishing a comprehensive preventive maintenance program significantly extends MCC service life while reducing unexpected failures. Monthly visual inspections identify obvious issues like unusual sounds, odors, or visible damage before they escalate into failures. Quarterly infrared thermography scans detect developing hot spots invisible to visual inspection, with temperature rises above 40°C indicating immediate attention requirements.

Semi-annual maintenance tasks include verifying torque specifications on all power connections, testing protection relay calibration, and exercising rarely-used disconnect switches to prevent seized mechanisms. Annual comprehensive evaluations should document insulation resistance measurements, conduct high-potential testing on bus systems, and perform arc flash hazard analysis updates reflecting any system modifications.

Maintenance scheduling should align with production schedules to minimize operational impact. Many facilities conduct major maintenance during annual shutdowns, though critical systems may require redundant configurations allowing online maintenance without disrupting operations. Documentation of all maintenance activities creates valuable trending data that identifies degradation patterns before failures occur.

Troubleshooting Common Issues

Systematic troubleshooting approaches resolve MCC issues efficiently while minimizing downtime. When motors fail to start, technicians should first verify control voltage presence at starter coils, then check overload relay status and reset if tripped. Persistent tripping indicates genuine overload conditions requiring investigation of mechanical loads, voltage imbalances, or motor winding integrity.

Erratic operation often stems from loose connections creating intermittent contact. Retorquing connections to manufacturer specifications typically resolves these issues. Control circuit problems frequently involve failed auxiliary contacts, timer malfunctions, or programming errors in automated systems. Our technical support team at Riverside Drives provides remote troubleshooting assistance, helping maintenance teams quickly identify root causes and implement corrective actions that restore reliable operation.

Future Trends in MCC Technology

Digital Transformation and IoT Integration

The industrial Internet of Things revolutionizes MCC capabilities through unprecedented connectivity and intelligence. Next-generation MCCs incorporate edge computing devices that process data locally, reducing network bandwidth requirements while enabling real-time decision-making. Machine learning algorithms analyze historical operating patterns to predict component failures weeks before occurrence, allowing scheduled replacement during planned maintenance windows rather than emergency repairs.

Cloud-based monitoring platforms aggregate data from multiple facilities, enabling centralized management of geographically distributed operations. These systems provide mobile access to real-time operating parameters, automated alerts for abnormal conditions, and comprehensive analytics dashboards that identify optimization opportunities across entire motor populations. Integration with enterprise resource planning systems automatically generates work orders when maintenance thresholds are reached, streamlining maintenance workflows.

Sustainability and Energy Optimization

Environmental regulations and corporate sustainability goals drive innovation in MCC energy management capabilities. Advanced power monitoring functions track individual motor energy consumption, identifying inefficient equipment candidates for upgrade or replacement. Regenerative drive technology captures braking energy from decelerating loads, feeding it back to the power system rather than dissipating it as waste heat.

Smart load management algorithms optimize motor starting sequences to minimize demand charges while maintaining production requirements. Integration with renewable energy sources and battery storage systems enables facilities to operate motors using clean energy during peak rate periods. We at Riverside Drives help clients implement these sustainable technologies, reducing both operating costs and environmental impact through intelligent motor control strategies that align with corporate sustainability objectives while maintaining operational reliability.

When to Upgrade Your MCC

Age and Obsolescence Indicators

MCCs typically provide 20-30 years of reliable service under proper maintenance conditions. However, several factors may necessitate earlier upgrades. Parts obsolescence for units older than 20 years makes repairs increasingly difficult and expensive. Outdated designs may lack modern safety features required by current NFPA 70E and IEEE 1584 standards. Legacy systems often cannot integrate with modern automation platforms, limiting operational visibility and control capabilities.

Capacity and Growth Considerations

Facility expansion often outpaces original MCC design capacity. Warning signs include frequent breaker tripping under normal loads, enclosure temperatures exceeding manufacturer specifications, and inability to add new motor circuits without overloading existing buses. When these symptoms appear, comprehensive load analysis determines whether selective component upgrades or complete replacement provides the optimal solution.

Technology Advancement Opportunities

Upgrading to modern motor control technology delivers substantial returns without requiring complete MCC replacement. Replacing direct-on-line starters with soft starters or VFDs reduces energy consumption while eliminating mechanical stress during startup. Network-enabled components enable predictive maintenance strategies that prevent unexpected failures. Our team at Riverside Drives specializes in retrofitting existing MCCs with advanced control solutions that maximize your investment while improving operational performance.

Why Choose Riverside Drives for Your MCC Solutions

With over 40 years of experience in custom control panel design and power transmission equipment, we bring unmatched expertise to every MCC project. Our ABB-certified drive specialists achieve the highest proficiency levels in drive selection, programming, and troubleshooting, ensuring optimal system configuration for your specific applications.

We offer comprehensive solutions from initial design through installation and ongoing support. Our UL508A certification guarantees compliance with industry standards, while our partnerships with leading manufacturers like ABB provide access to cutting-edge technology at competitive prices. Whether you need a complete MCC system, component upgrades, or expert consultation on optimization strategies, our team delivers solutions tailored to your operational requirements.

Key Takeaways

Motor control centers transform motor management from a distributed challenge into a centralized solution that improves safety, efficiency, and reliability. Understanding MCC components, operation principles, and maintenance requirements enables informed decisions about system selection and upgrade timing. Regular maintenance, environmental protection, and proactive component replacement prevent costly failures and extend system life. Modern MCC technology offers significant opportunities for energy savings and operational improvement through intelligent control and monitoring capabilities.
