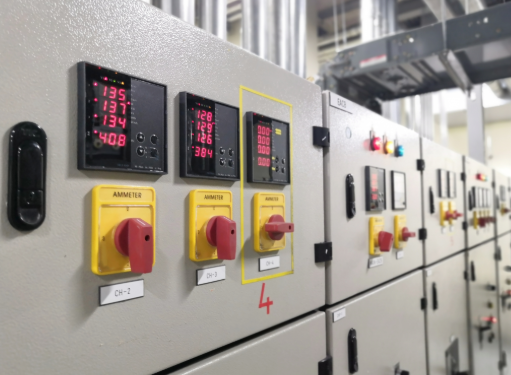

Understanding Three-Phase Power Fundamentals
Three-phase electrical systems generate power through three separate alternating current waveforms, each reaching peak voltage at different times within the cycle. These waveforms maintain a 120-degree phase separation, ensuring that at any given moment, the combined power output remains relatively constant. This continuous power delivery contrasts sharply with single-phase systems, where power drops to zero twice during each cycle, creating pulsations that can affect equipment performance.
The generation of three-phase power begins at electrical generators, where three separate windings positioned 120 degrees apart produce the phase-shifted waveforms. As the generator rotor spins, it induces voltage in each winding sequentially, creating the characteristic three-phase output. Power plants and industrial generators produce three-phase power directly, making it the natural choice for large-scale electrical distribution systems.
Voltage relationships in three-phase systems include both line-to-line and line-to-neutral measurements. Line voltage, measured between any two phases, equals approximately 1.732 times the phase voltage measured from any phase to neutral. This relationship allows three-phase systems to provide multiple voltage levels from a single distribution system, enhancing flexibility for various equipment requirements. Common industrial voltages include 208V, 240V, 480V, and 600V line-to-line, with corresponding phase voltages available for smaller loads.
The mathematical representation of three-phase power demonstrates its efficiency advantages. While single-phase power varies sinusoidally from zero to peak values, the sum of three phase-shifted waveforms maintains constant power delivery. This characteristic eliminates torque pulsations in motors, reduces vibration, and provides smoother operation for rotating machinery. Industrial equipment designed for three-phase operation capitalizes on these inherent advantages.
Three-Phase Power Configuration and Connections
Three-phase systems utilize two primary connection configurations: wye (star) and delta. Wye connections join one end of each phase winding at a common neutral point, creating a configuration resembling the letter Y. This arrangement provides both three-phase and single-phase power from the same system, with the neutral connection enabling line-to-neutral voltage for single-phase loads. Delta connections form a closed triangle with phase windings connected end-to-end, providing three-phase power without a neutral conductor.
Wye-connected systems dominate commercial and light industrial applications due to their versatility and grounding advantages. The neutral point provides a stable reference for system grounding, enhancing safety and facilitating ground fault protection. Additionally, wye systems easily accommodate mixed three-phase and single-phase loads, common in commercial buildings and smaller industrial facilities. The availability of two voltage levels from a single transformer makes wye systems particularly attractive for diverse load requirements.
Delta connections excel in heavy industrial applications where three-phase loads predominate. The absence of a neutral conductor reduces installation costs for purely three-phase systems, while the closed-loop configuration provides continued operation even if one phase experiences problems. Industrial facilities with large motor loads often prefer delta systems for their robust performance and simplified distribution requirements. At Riverside Drives, we design control panels compatible with both configurations, ensuring optimal integration regardless of facility power architecture.
Transformer connections enable conversion between wye and delta configurations, providing flexibility in power distribution design. Delta-wye transformers commonly serve industrial facilities, accepting utility delta connections while providing wye-connected power for facility distribution. This arrangement combines the transmission efficiency of delta systems with the versatility of wye distribution. Understanding these configurations ensures proper equipment specification and system design.
Advantages of Three-Phase Power Systems
Power transmission efficiency represents a primary advantage of three-phase systems over single-phase alternatives. Three-phase transmission requires only three or four conductors compared to six conductors needed for equivalent single-phase capacity, reducing material costs and installation complexity. The balanced nature of three-phase loads minimizes neutral current, allowing smaller neutral conductors in wye systems or eliminating them in delta configurations. These efficiencies translate to significant cost savings in industrial electrical infrastructure.
Motor operation improves dramatically with three-phase power. Three-phase motors develop constant torque throughout rotation, eliminating the pulsations inherent in single-phase motor operation. This smooth power delivery increases motor efficiency, reduces vibration and noise, and extends equipment life. Starting torque for three-phase motors exceeds single-phase equivalents, enabling direct-on-line starting for many applications without specialized starting circuits. We incorporate these advantages into our motor control solutions, optimizing performance for specific industrial applications.
Power density advantages make three-phase systems ideal for industrial applications. Three-phase equipment typically offers higher power ratings in smaller, lighter packages compared to single-phase alternatives. A three-phase motor delivering specific horsepower weighs less and occupies less space than an equivalent single-phase motor. This compactness reduces equipment costs, simplifies installation, and maximizes facility space utilization.
Electrical system balancing improves with three-phase distribution. Properly distributed three-phase loads create balanced current flow in all phases, minimizing losses and preventing overloading of individual phases. This balance extends to the utility supply, where three-phase industrial loads help maintain grid stability. Single-phase loads, when distributed across phases, benefit from the averaging effect of three-phase systems, reducing voltage fluctuations and improving power quality.
Industrial Applications and Equipment
Manufacturing facilities rely extensively on three-phase power for production equipment operation. Large motors driving pumps, compressors, conveyors, and processing machinery operate most efficiently on three-phase power. Machine tools, including lathes, mills, and CNC equipment, utilize three-phase motors for spindle drives and axis positioning, benefiting from smooth torque delivery and precise speed control. The consistent power availability ensures uniform product quality and maximizes production throughput.
HVAC systems in industrial and commercial buildings predominantly use three-phase power for large air conditioning compressors, chillers, and air handling units. The efficiency advantages of three-phase motors become particularly significant in these continuous-duty applications where energy costs represent substantial operational expenses. Variable frequency drives controlling three-phase HVAC motors provide additional energy savings through speed modulation based on cooling demand.
Welding operations benefit from three-phase power's stable arc characteristics and high power availability. Three-phase welding equipment provides smoother arc stability, reduced spatter, and improved weld quality compared to single-phase alternatives. Industrial welding applications requiring high deposition rates or continuous operation particularly benefit from three-phase power systems. The balanced load presented by three-phase welders minimizes power system disturbances that could affect sensitive equipment.
Process heating applications utilize three-phase power for uniform heat distribution and precise temperature control. Industrial furnaces, ovens, and heat treatment equipment employ three-phase heating elements arranged to provide balanced loading and even heating patterns. The constant power delivery of three-phase systems eliminates temperature fluctuations associated with single-phase heating cycles. Riverside Drives engineers control systems for three-phase heating applications, incorporating sophisticated temperature control and load management features.
Power Quality and Harmonic Considerations
Power quality in three-phase systems affects equipment performance, efficiency, and reliability. Voltage imbalance between phases can cause motor overheating, reduced efficiency, and premature failure. Industry standards recommend maintaining voltage imbalance below 2% for optimal motor performance. Our control panels incorporate phase monitoring protection to detect and respond to imbalance conditions, protecting valuable equipment from damage.
Harmonic distortion represents an increasing concern in modern three-phase systems due to the proliferation of non-linear loads, including variable frequency drives, switching power supplies, and LED lighting. These devices draw non-sinusoidal current, creating harmonic frequencies that can cause transformer overheating, capacitor failure, and interference with sensitive electronic equipment. Understanding harmonic impacts ensures proper system design and mitigation strategies.
Mitigation techniques for harmonic distortion include passive filters, active filters, and phase-shifting transformers. Passive filters using capacitors and inductors target specific harmonic frequencies, providing cost-effective solutions for known harmonic sources. Active filters dynamically compensate for varying harmonic content, offering superior performance for facilities with changing load profiles. We integrate appropriate harmonic mitigation into our control panel designs based on specific facility requirements and harmonic analysis results.
Power factor correction in three-phase systems improves energy efficiency and reduces utility costs. Inductive loads common in industrial facilities cause lagging power factor, requiring additional current for given power delivery. Capacitor banks connected to three-phase systems provide leading reactive power, compensating for inductive loads and improving overall power factor. Automatic power factor correction systems monitor and adjust capacitance to maintain optimal power factor under varying load conditions.
Safety Considerations for Three-Phase Systems
Three-phase electrical systems present unique safety challenges requiring specialized knowledge and procedures. The higher voltages typically associated with three-phase systems increase arc flash hazards, necessitating appropriate personal protective equipment and safety procedures. Phase rotation concerns add complexity, as an incorrect phase sequence can cause motors to run backward, potentially damaging equipment or creating safety hazards.
Grounding systems for three-phase installations must accommodate the specific configuration employed. Wye systems typically utilize solid neutral grounding, providing effective ground fault protection and personnel safety. Delta systems may employ corner grounding, center-tap grounding, or high-resistance grounding depending on application requirements. Understanding grounding implications ensures code compliance and optimal protection system performance.
Lockout/tagout procedures for three-phase equipment require verification of zero energy state on all phases before maintenance work begins. The presence of multiple phases increases the possibility of backfeed conditions where one phase energizes supposedly de-energized conductors through motor windings or transformer connections. Proper testing procedures and appropriate voltage-rated test equipment are essential for safe maintenance operations.
Arc flash analysis becomes critical for three-phase systems due to higher available fault currents. Industrial facilities must conduct arc flash studies to determine incident energy levels and establish appropriate protection boundaries. At Riverside Drives, we design control panels with arc flash mitigation features, including current-limiting devices, arc-resistant construction, and remote operation capabilities to enhance personnel safety.
Integration with Modern Control Systems
Variable frequency drives revolutionize three-phase motor control by providing precise speed regulation, soft starting capabilities, and energy optimization. These sophisticated devices convert incoming three-phase AC power to DC, then synthesize variable-frequency three-phase output for motor control. Modern VFDs incorporate advanced features including vector control, regenerative braking, and predictive maintenance monitoring. We engineer custom VFD panels that maximize these capabilities while ensuring reliable operation in demanding industrial environments.
Programmable logic controllers interface seamlessly with three-phase power systems, monitoring electrical parameters and controlling equipment operation. PLCs measure phase voltages, currents, and power consumption, providing real-time data for process optimization and energy management. Integration between PLCs and three-phase motor starters, contactors, and protection devices enables sophisticated automation strategies that improve efficiency and reduce operational costs.
Communication protocols allow three-phase power systems to participate in facility-wide automation networks. Intelligent motor control centers communicate operational status, energy consumption, and diagnostic information to supervisory systems. This connectivity enables centralized monitoring, remote operation, and coordinated control strategies that optimize overall facility performance. Our control solutions incorporate industry-standard communication protocols, ensuring compatibility with existing automation infrastructure.
Predictive maintenance capabilities in modern three-phase systems reduce unexpected downtime and maintenance costs. Continuous monitoring of electrical parameters, including current imbalance, harmonic content, and power factor, identifies developing problems before equipment failure occurs. Advanced analytics correlate electrical signatures with mechanical conditions, enabling condition-based maintenance strategies that maximize equipment availability while minimizing maintenance expenses.
